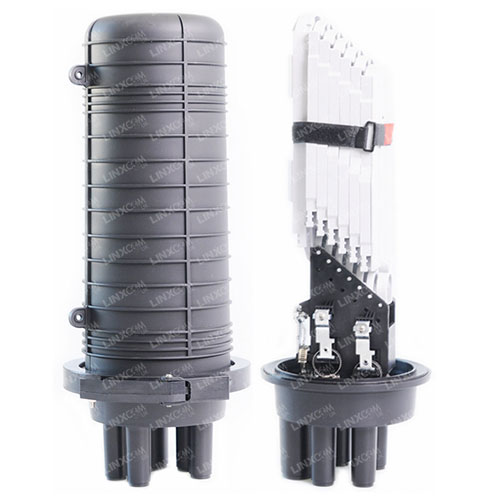

Dome Enclosure DER17

Large capacity fibre optic dome enclosure IP68 rated with 5 heat shrink cable entries up to 144 fibres.


Datasheet

Categories: , Tag:

Description

Linxcom Dome Enclosure DER17 provides protection over direct, branch and terminal connection for cables.

Dome Enclosure DER17 is easy and reliable to install, delivering high mechanical strength against every environmental condition. Widely used in many applications.


Features & Benefits

  • Up to 144 fibres
  • 5 cable entries
  • Protects fibre splices in the field
  • HQ Polypropylene
  • IP 68 rated
  • Removable Adaptor Plate
  • Heat Shrink sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Chemical resistant
  • Dimensions: 210 * 470mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH
  • Water submersible

Ordering Information

Part Number Selection

Generated Product Code:

LXMDER17BXXM

Replace the XX in the product code with the fibre capacity required.
