Linxcom pre-terminated fibre systems provide rapid fibre deployment at an extremely cost effective, expandable and high speed solution.

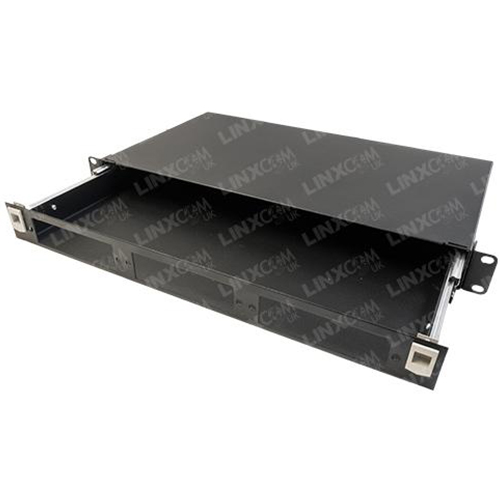

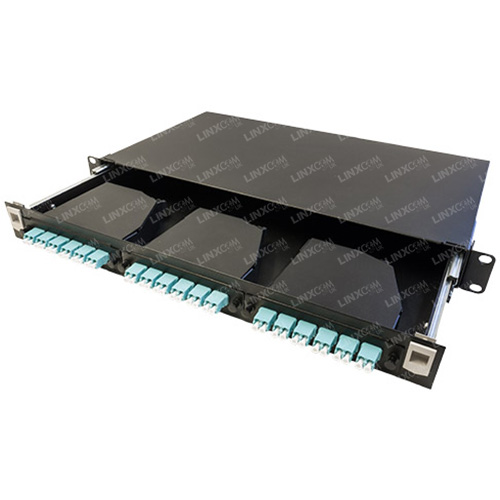

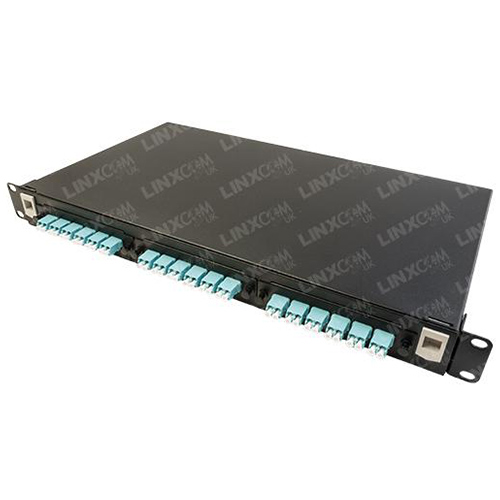

The 1U MTP sliding patch panel is split into 2 compartments; a sealed pre-terminated section and a cable management section for any excess cable. This helps ensure a neat and tidy installation and prevents accidental disconnections.
The panel offers users up to 72 LC duplex or 36 SC simplex ports in one panel.
MTP pre-terminated cables enter the back of the panel and the excess cable is wound around the convenient cable retainers.

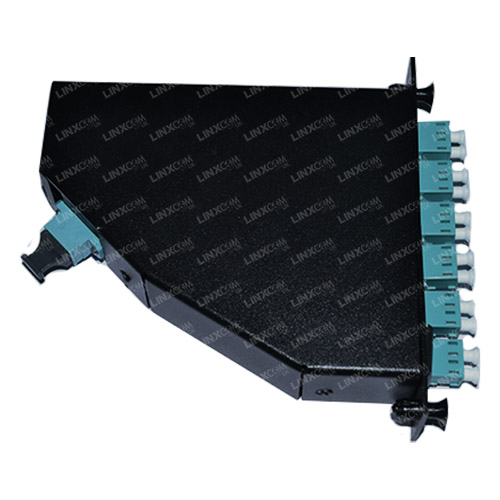

Pre-terminated MTP connectors plug into port bulkheads at the rear of the LGX modules. Fan-out cables inside the module split to either LC or SC ports.
Features & Benefits
- Size: 1U
- Dimensions (WxDmm): 483 x 395
- No. Cassette: 3
- Max. Capacity: 72 (LC)
- Utilises high density MTP connectors
- Sliding telescopic rails for easy installation and maintenance
- Cable management compartment
- Multimode and Singlemode options
- Reduces installation time and cost
- Ideal for use with MTP pre-terminated cables
- Holds 3 LGX modules
- 12 and 24 LC duplex or 6 and 12 SC simplex LGX modules
- Terminated in a quality controlled factory
Part Number Selection
Generated Product Code:
Example: LXM1ULGXSCSXSMA36 – 1U MTP LGX Sliding Patch Panel SC/APC Simplex 36 Port
