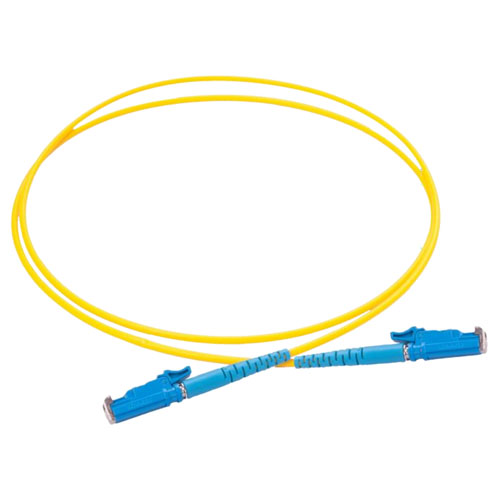

Singlemode Patch Cords

OS1 and OS2 (9/125um) fibre optic singlemode patch cords.


Datasheet

Categories: ,




Description

Linxcom offers a wide range of Singlemode Patch Cords, designed and manufactured for demanding LAN and telecom applications. It comprises of singlemode OS1 (9/125um) and OS2.

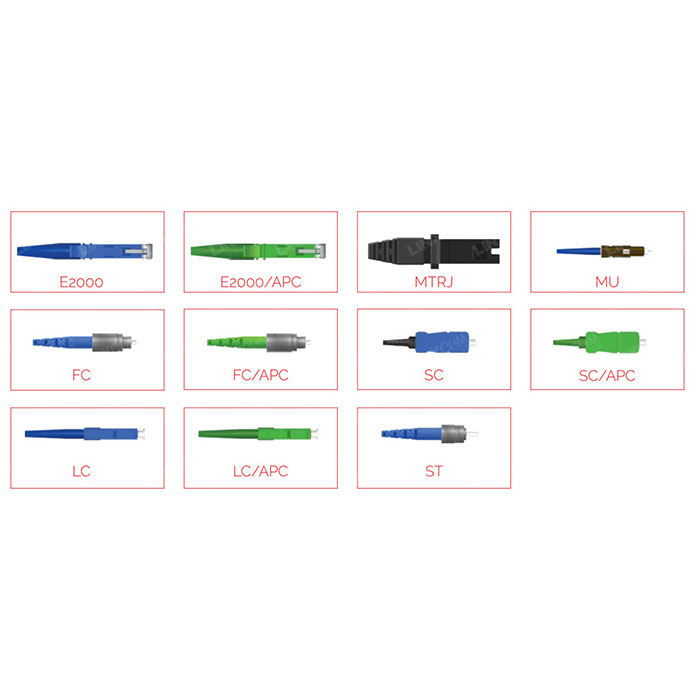

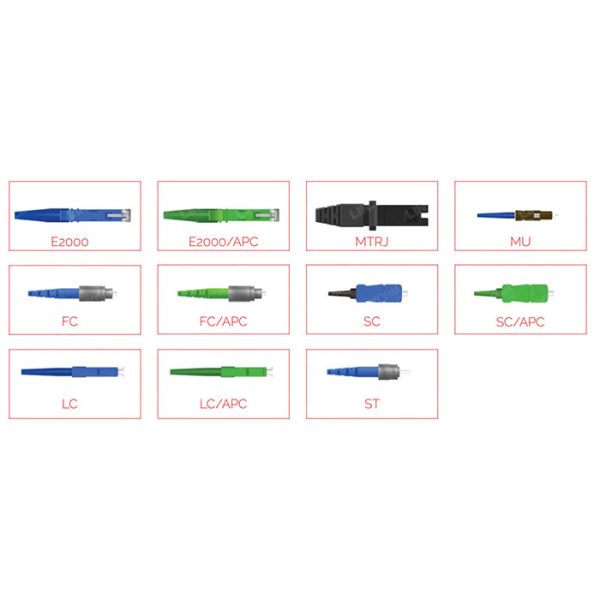

Singlemode Patch Cords are available in simplex and duplex with the following connector types: ST, SC, LC, FC, E2000, SMA, MTRJ, MU and more, in UPC and APC. Coloured jacket, 2mm or 3mm available upon request.


Features & Benefits

  • ISO certified laboratory
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • End-face geometry requirement comply to Telcordia GR-326-CORE
  • Compliant with RoHS, IEC 874-14, TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7, TIA-604-5
  • For end-to-end fibre cable connectivity
  • High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
  • Available in Single mode OS1 (9/125) and OS2
  • Cable outer jacket available in Riser (OFNR), Low Smoke Zero Halogen (LSZH), Plenum (OFNP)
  • Standard colour is Yellow, other colours available upon request
  • Coloured connector boot for easy identification for Singlemode with APC connectors
  • Customer specified length
  • Corning fibre available for selection G. 652-D is our standard but available in G. 652-B, G. 655, G. 657

Ordering Information

Part Number Selection

Generated Product Code:

......

Example: SCASCDPCOS2YEL03 – SC/APC-SC/UPC Duplex Patch Cord OS2 Yellow 3m
