Multimode Patch Cords

OM1, OM2 OM3 and OM4 (62.5/125um, 50/125um) fibre optic multimode patch cords


Datasheet

Categories: ,




Description

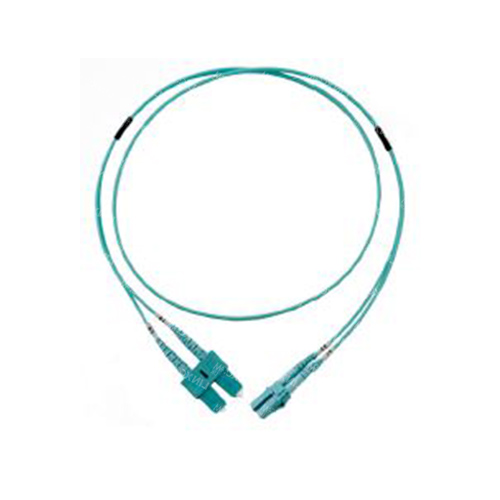

Linxcom offers a wide range of Multimode Patch Cords, designed and manufactured for demanding network applications, comprising of multimode OM1, OM2, OM3 and OM4 (62.5/125, 50/125).

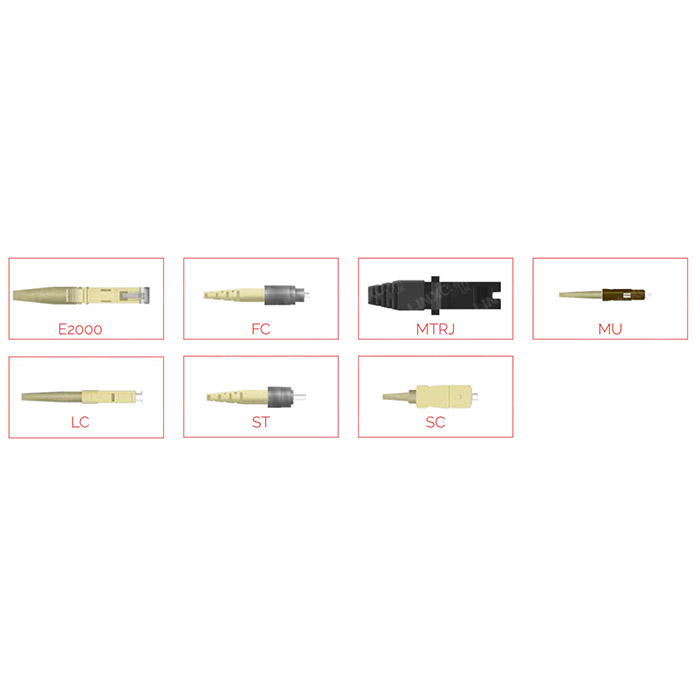

Multimode Patch Cords are available in simplex and duplex with the following connector types: ST, SC, LC, FC, E2000, SMA, MTRJ, MU and more, in UPC and APC. Coloured jacket, 2mm or 3mm available upon request.


Features & Benefits

  • ISO certified laboratory
  • 100% tested on optical performance (Insertion Loss & Return Loss)
  • End-face geometry requirement comply to Telcordia GR-326-CORE
  • Compliant with RoHS, IEC 874-14, TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7, TIA-604-5
  • For end-to-end fibre cable connectivity
  • High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
  • Available in Multimode OM1, OM2, OM3 and OM4 (62.5/125, 50/125)
  • Cable outer jacket available in Riser (OFNR), Low Smoke Zero Halogen (LSZH), Plenum (OFNP)
  • Standard colour is Orange, other colours available upon request
  • Coloured connector boot for easy identification
  • Customer specified length
  • Corning fibre available

Ordering Information

Part Number Selection

Generated Product Code:

......

Example: SCASCDPCOM2YEL03 – SC/APC-SC/UPC Duplex Patch Cord OM2 Yellow 3m
