Dome Enclosure DER03

Fibre optic dome enclosure with 9 heat shrink cable entries up to 96 fibres.


Datasheet

Categories: , Tag:




Description

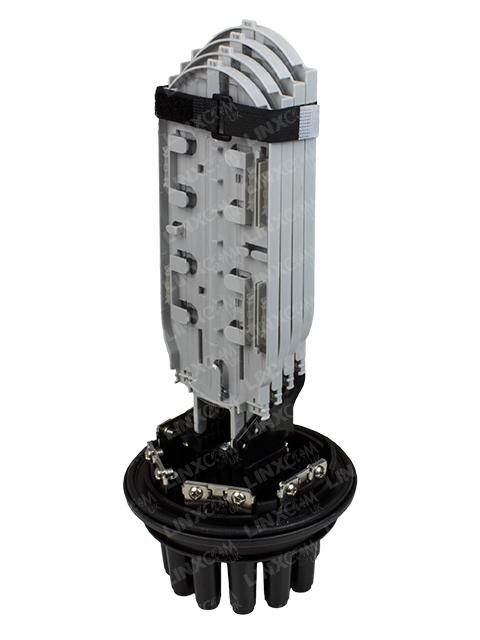

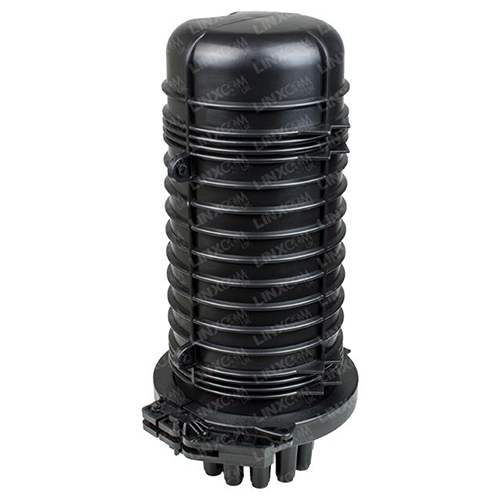

Linxcom Dome Enclosure DER03 provides protection over direct connection, branch and continual connection for types of cables.

Dome Enclosure DER03 supports passive optical splitter. It is widely used in many applications: aerial, pole-mounting and wall-mounting. The protection grade of the closure is IP68 & IK10.


Features & Benefits

  • Holds up to 96 fibres
  • 9 cable entries
  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated
  • Special cable entry seals available for multiple cables, specifically designed for FTTx applications
  • Heatshrink sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Chemical resistant
  • Dimensions: 470 * 210mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH

Ordering Information

Part Number Selection

Generated Product Code:

LXMDER03BXXH

Replace the XX in the product code with the fibre capacity required.
