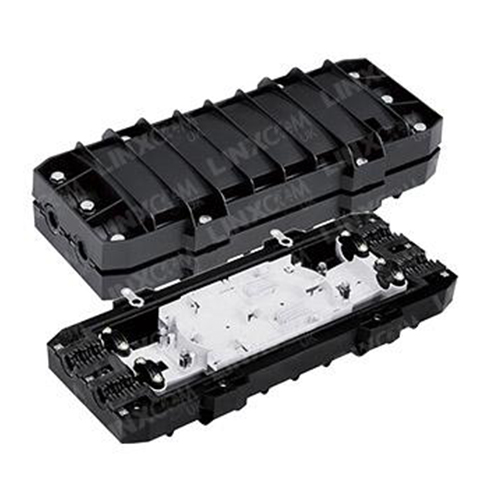

Inline Enclosure PP01

Medium capacity fibre optic inline enclosure IP68 rated with 4 cable entries and up to 96 fibres


Datasheet

Categories: , Tag:




Description

Inline Enclosure PP01 is our most basic inline enclosure for medium size applications. It’s a great seller, popular because of the low price and great reliability. Tried and tested, no water ingress after years of use and excellent resealing performance.

Inline Enclosure PP01 is easy and reliable to install, and provides high mechanical strength against every environmental condition.

Protects fibre optic splicing points in different types of installation conditions such as wall, pole and duct mounting as well as direct burial.


Features & Benefits

  • Up to 96 fibres
  • 4 cable entries
  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated

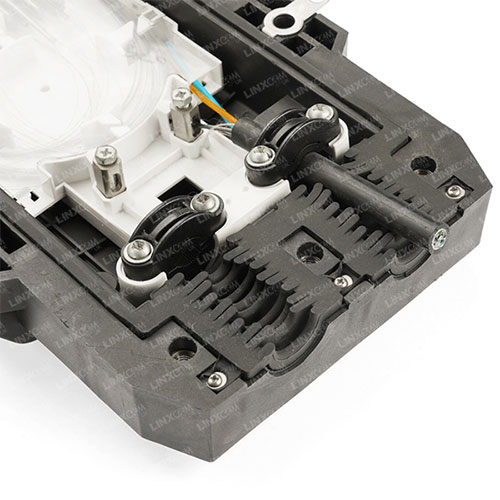

  • Reusable Silica gel seal in order to ensure an airtight, waterproof performance
  • No special tools required
  • Mechanical sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Dimensions: 432 * 186 * 100mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH
  • Water submersible

Ordering Information

Part Number Selection

Generated Product Code:

LXMPP01INLXXM

Replace the XX in the product code with the fibre capacity required.
