Inline Enclosure PP08

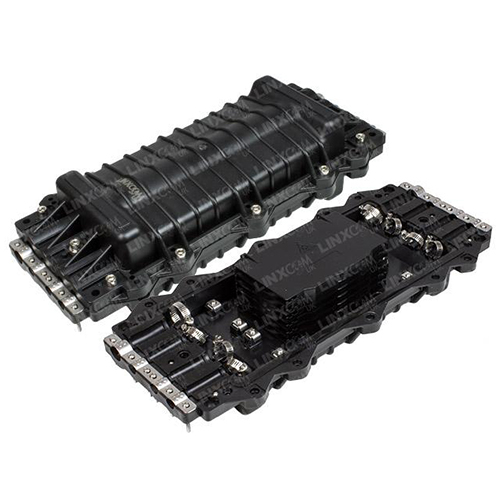

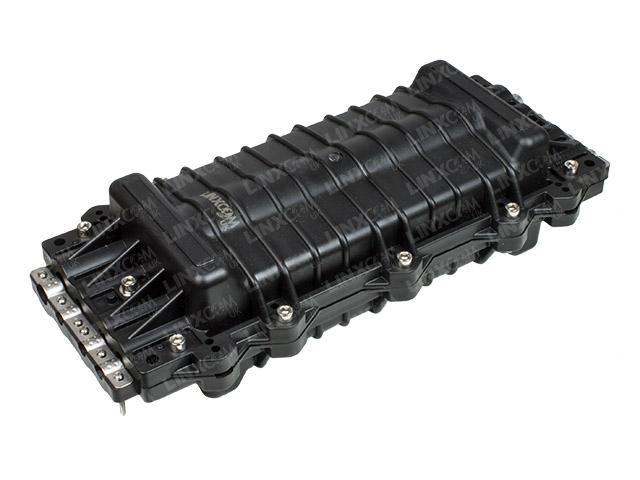

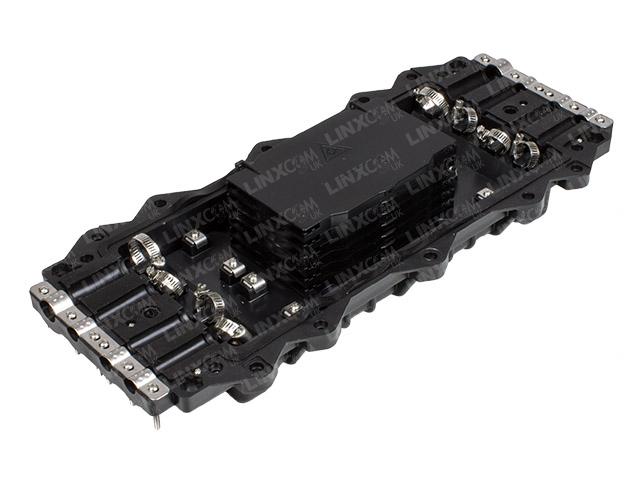

Fibre optic inline enclosure IP68 rated with 8 cable entries and up to 96 fibres


Datasheet

Categories: , Tag:

Description

Inline Enclosure PP08 is similar to model 07 but it is bigger and has more cable entries for applications where it is required.

Still maintaining a low cost although not quite as competitive price wise, Inline Enclosure PP08 represents a step up in quality over model 07 with the same fibre capacity.


Features & Benefits

  • Up to 144 fibres
  • 8 cable entries
  • Accepts up to 17.5mm diameter cables
  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated
  • Reusable Silica gel seal in order to ensure an airtight, waterproof performance
  • No special tools required
  • Mechanical sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Dimensions: 455 * 201 * 120mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH
  • Water submersible

Ordering Information

Part Number Selection

Generated Product Code:

LXMPP08INLXXM

Replace the XX in the product code with the fibre capacity required.
