1U 24 Port – Loaded Sliding Patch Panel – SC/LC

24 Port Loaded Patch Panel holds up to 48 fibres as SC or LC connections.


Datasheet

Categories: , Tags: ,

Description

This 1U 24 Port Loaded Sliding Patch Panel presents up to 48 fibres as SC or LC connections.

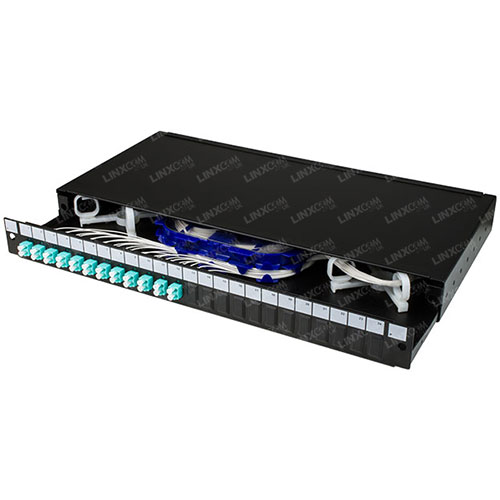

The front of the panel has exchangeable front frames for use with any fibre optic connector type. The tray slides out to allow easy access while preserving the bend radius of connecting patch cables. When fully extended the panel pivots down 45 degrees at a convenient working angle.

Allows direct connection of pre-terminated cables or 48 individual bare fibre splices. With adequate fibre storage for 0.9mm pigtails.

Available empty or loaded in any configuration and with any approved fibre type.


Features & Benefits

  • Holds up to 48 fibres
  • Precise dimensions and craftsmanship
  • Easy to use opening/closing fasteners
  • Removable and exchangeable front frame
  • Recessable adapters with inner front frame
  • Adjustable brackets for a fully recessed panel
  • 180° or 45° open working angle for easy access
  • Individually labelled ports
  • 4 cables entries and knock-out plate
  • Built-in strength member tie positions
  • Multi adapter options available within 24 ports
  • Available loaded with adapters, pigtails and more

Ordering Information

Part Number Selection

Generated Product Code:

1USPP..24

Example: 1USPPSCSXSM24 – Singlemode loaded 1U SC Simplex 24 Port Sliding Patch Panel
