Segmental-type Fibre Management

Fibre management accessory for inside patch panels and other enclosures.


Datasheet

Categories: ,




Description

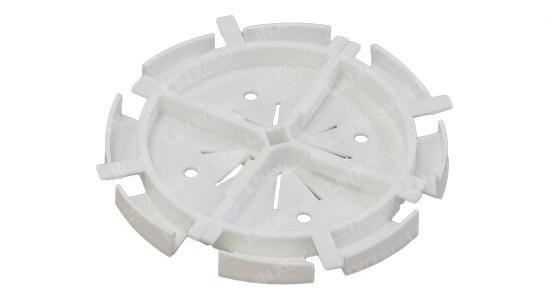

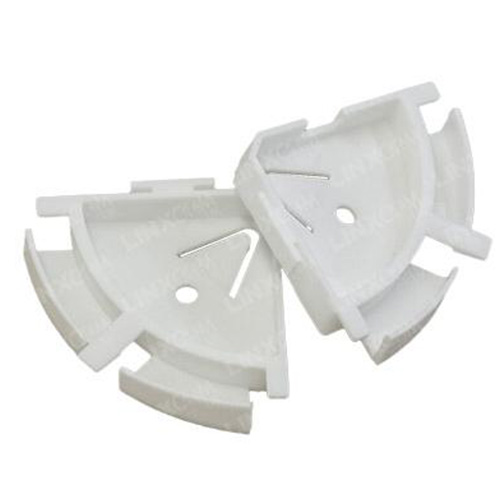

Segmental-type fibre management can be purchased in quarter segments or in a full wheel.

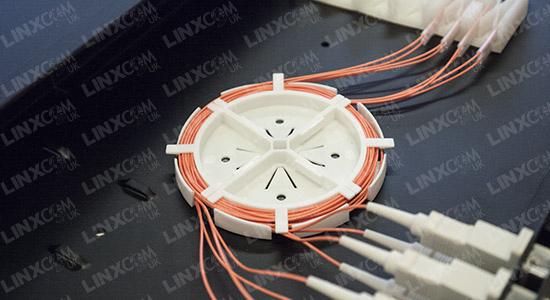

The segments click together to produce 90, 180 and 360 degrees management or alternatively can be spaced out separately for a greater bend radius and/or oblong shape.


Features & Benefits

  • Attachable & stackable segments, perfect for permanent, temporary or adaptable management
  • Holds up to 5m of 900 micron fibre, or more if segments are spaced out
  • Complete with 4 adhesive pads for mounting
  • Clean and tidy fibre management

Ordering Information

Part Number Selection


Generated Product Code:

.

STFM01 – Segmental-type Fibre Management – Quarter Segment
STFM02 – Segmental-type – Full (4x Quarter Segments)
STFMKIT01 – Segmental-type Economy Kit (8x Quarter Segments, Splice Bridge, Protection Sleeves)
STFMKIT02 – Segmental-type Standard Kit (8x Quarter Segments, Splice Blocks, Protection Sleeves)
STFMKIT03 – Segmental-type Enhanced Kit (8x Quarter Segments, Splice Cassette, Protection Sleeves)
