Inline Enclosure PP05

Fibre optic inline enclosure IP68 rated with 6 cable entries and up to 180 fibres


Datasheet

Categories: , Tag:




Description

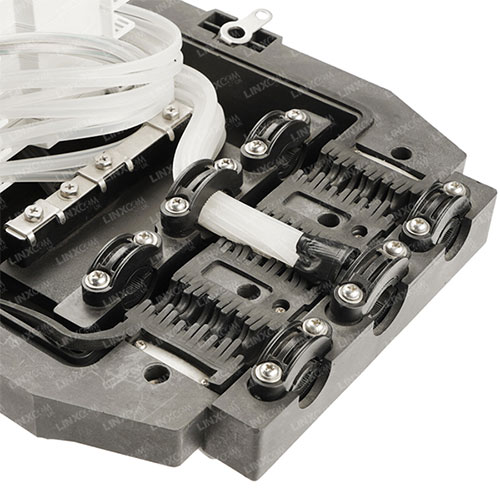

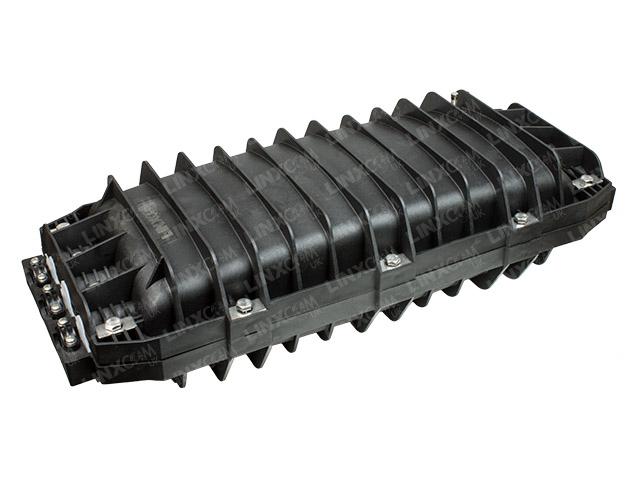

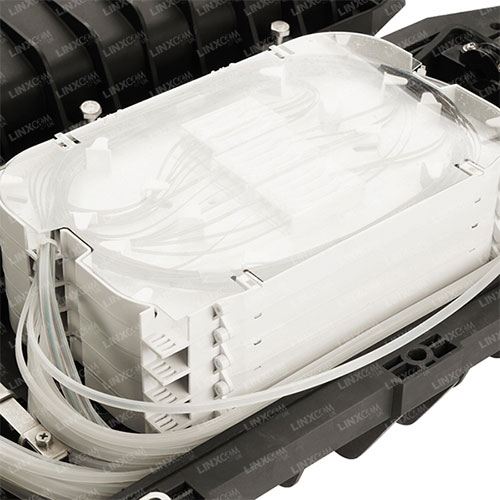

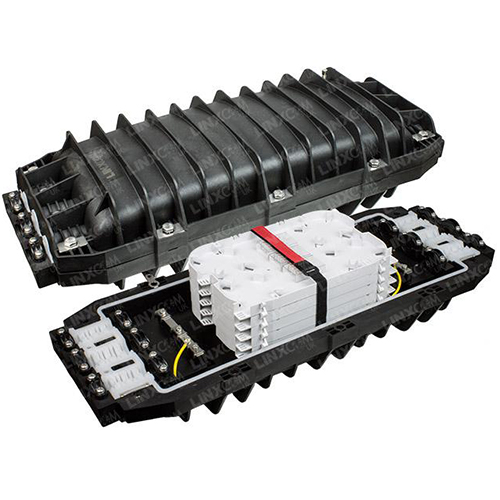

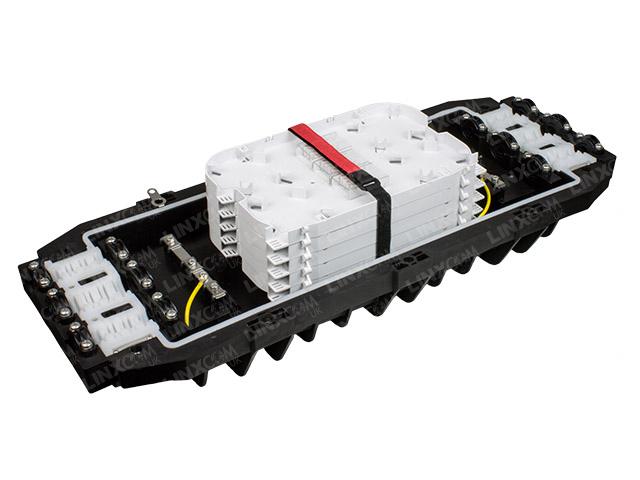

Inline Enclosure PP05 is our premium large capacity inline enclosure covering the 96 – 180 splice range. This is a high quality enclosure with exceptional design for ease of use, great reliability and re-sealing performance while maintaining a slim profile.

Inline Enclosure PP05 is easy and reliable to install, and provides high mechanical strength against every environmental condition.

Protects fibre optic splicing points in different types of installation conditions such as wall, pole and duct mounting as well as direct burial.


Features & Benefits

  • Up to 180 fibres
  • 6 cable entries
  • Accepts up to 25mm diameter cables
  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated
  • Reusable Silica gel seal in order to ensure an airtight, waterproof performance
  • No special tools required
  • Mechanical sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Dimensions: 648 * 245 * 158mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH
  • Water submersible

Ordering Information

Part Number Selection

Generated Product Code:

LXMPP05INLXXM

Replace the XX in the product code with the fibre capacity required.
