Inline Enclosure PP04

Small capacity compact fibre optic inline enclosure IP68 rated with 8 cable entries and up to 48 fibres


Datasheet

Categories: , Tag:

Description

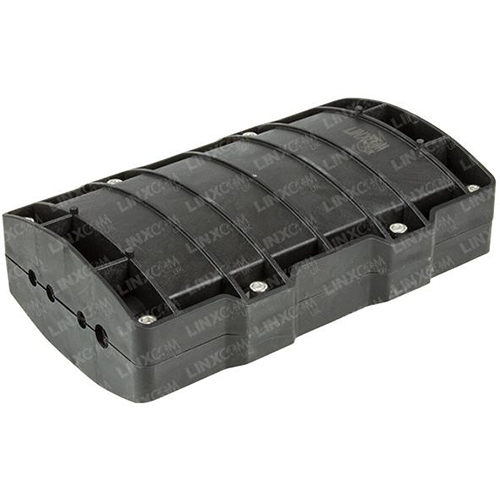

Inline Enclosure PP04 is the smallest available inline enclosure in the Linxcom range. It is ideally suited to applications where only 48 splices or less are required. The compact size makes it ideal for small spaces offering excellent IP68 rated re-sealing performance. High quality and great value for money.

Inline Enclosure PP04 is easy and reliable to install, and provides high mechanical strength against every environmental condition.

Protects fibre optic splicing points in different types of installation conditions such as wall, pole and duct mounting as well as direct burial.


Features & Benefits

  • Up to 48 fibres
  • 8 cable entries
  • Accepts up to 12mm diameter cables

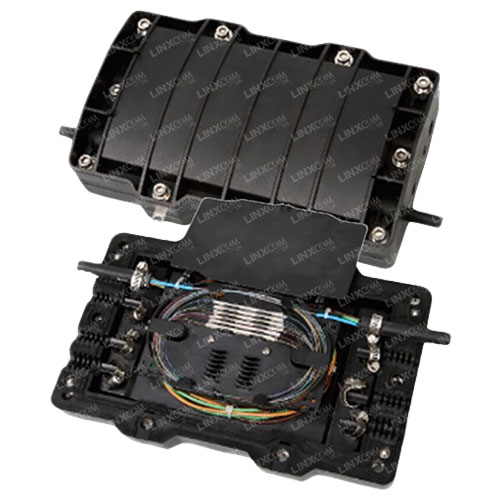

  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated
  • Reusable Silica gel seal in order to ensure an airtight, waterproof performance
  • No special tools required
  • Mechanical sealing
  • Made with high-strength plastic, PC, which prevents aging from cold, heat, oxygen and ultraviolet radiation
  • Dimensions: 280 * 180 * 85mm

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH
  • Water submersible

Ordering Information

Part Number Selection

Generated Product Code:

LXMPP04INLXXM

Replace the XX in the product code with the fibre capacity required.
