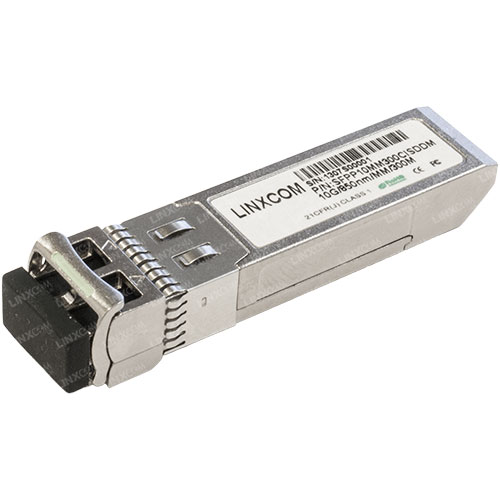

SFP+ Transceiver

SFP+ transceivers are compact transceivers offering up to 10Gb/s data transfer rate.


Datasheet

Categories: ,




Description

Small Form-Factor Pluggable Plus (SFP+) Fibre Optic Transceivers is a compact SFP+ transceiver used to interface networking devices to fibre or copper networking cables in telecom and data applications.

SFP+ transceiver offers data rates up to 10Gbps and transmission distances up to 120km.


Features

  • Support up to 10Gbps multi-rate data links
  • LC connector type
  • 850nm VCSEL laser and PIN photo detector
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring: Internal Calibration or External Calibration
  • 300m transmission with 50/125μm MMF
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature: Standard : 0 to +70°C Extended : -20 to +85°C
  • Suitable for 2x fibre channel, switch to switch interface, switched backplane applications, router/server interface and other optical transmission systems

Ordering Information

Part Number Selection

Generated Product Code:

SFP10...

Example: SFP10SM20CIS – SFP+ 10Gbps Singlemode 20KM Cisco Compatible
