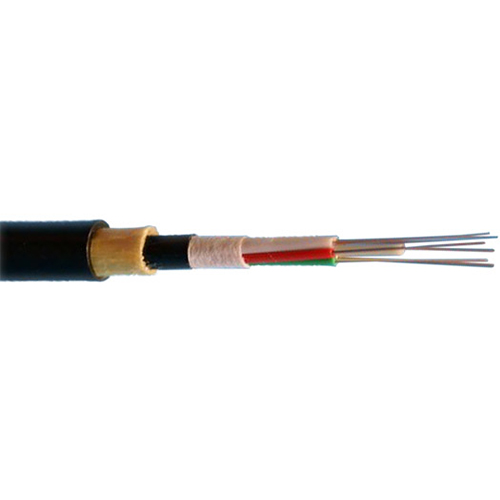

ADSS Aerial Cable

ADSS cables for installation with power distribution or near electrical power lines.


Datasheet

Categories: ,




Description

1

Optical Fibre

2

Central Strength Member

3

Loose Tubes

4

Filler

5

Inner Jacket

6

Aramid Yarn

7

Outer Jacket

All-Dielectric Self-Supporting (ADSS) Fibre Optic Cable is recommended for harsher environments, aerial or even direct burial applications.

The ADSS Aerial Cable range has been designed to be compact and to offer excellent tensile and crush performance making it suitable for installation with power distribution or near electrical power lines.

ADSS cables are available in span lengths to reach requirements for any application.


Features & Benefits

  • Dielectric unique design for use for installation with power distribution or near power lines
  • Very high tensile strength ideal for outdoor aerial applications
  • 12-288 Cores
  • Compact 250um loose tube
  • High crush resistance
  • Self-supporting design
  • Choice of sheath thicknesses for different span lengths
  • PE and flame-retardant LSZH sheath options

Ordering Information

Part Number Selection

Generated Product Code:

ADSS...

Example: ADSS48G652DPE – ADSS Aerial Cable 48 cores G652D PE
