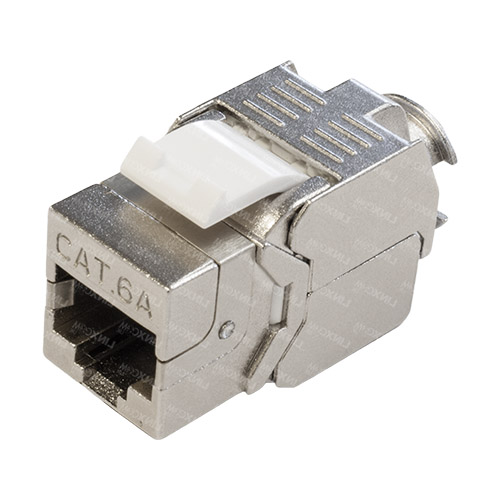

STP CAT6A Keystone Jack 180°

Shielded Category 6A keystone jacks with 180° termination construction.


Datasheet

Categories: ,




Description

Linxcom STP CAT6A Keystone Jacks 180 comply with the EIA/TIA standard for Category 6 and have a 180° termination structure.

They have a tool-free design allowing for termination without the need for a punchdown tool.

Available in Black, White, Black & White or Silver. All STP CAT6A Keystone Jacks 180 come with covers and are individually tested and checked before they leave our factory.


Features

  • Tool-free design
  • High temperature thermoplastic housing
  • Compact design, 8 positions and 8 conductors
  • Meets or exceed the requirement proposed by TIA /EIA 568 B .2 and TIA/EIA Category 6A
  • Phosphor Bronze contact with 6-50um gold plating
  • Low attenuation loss, high return loss
  • Accepts 23-26 AWG solid wires with insulation diameter of 0.4-0.6mm

Applications

  • POTS, T1&Tq fractional
  • 52/155 Mbps ATM (ATM Forum)
  • ASDN basic & primary rate
  • 100 BASE-T4 (Fast Ethernet)
  • 4/16 Mbps Token Ring (IEEE802.5)
  • 100 VG-Any LAN (IEEE802.12)
  • 10 BASE-T (IEEE802.3)
  • 100 BASE-T (Fast Ethernet)
  • 100 Mbps TP-PMD
  • 1 Gbps Ethernet (IEEE802.3)
  • 10 Gbps Ethernet

Ordering Information

Part Number Selection

Generated Product Code:

STP6AKSJ.

Example: STP6AKSJSLV – STP CAT 6A Keystone Jack 180° Silver
