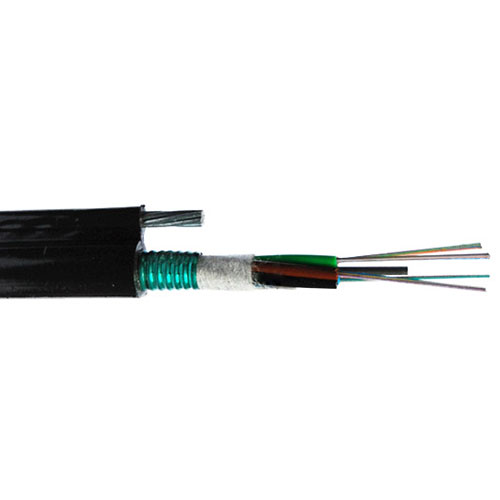

Figure 8 Cable

Figure 8 fibre optic cable with self-supporting steel messenger wire construction.


Datasheet

Sorry, this product is not available in your country
Categories: ,




Description

1

Fibre Optic Cable

2

Central Strength Member

3

Loose Tube

4

Filing Compound

5

APL

6

Stranded Wire

7

Jacket

Linxcom Figure 8 cable contain central loose tubes with a jelly compound inside to protect the cladding fibre, it also consists of corrugated steel tape armour laminated with plastic at both sides and bonding to a PE sheath.

Linxcom Figure 8 outdoor aerial cable contains a steel strength member messenger wire self-supporting part which has a high tensile strength which makes it easy and ideal for aerial applications.


Features & Benefits

  • Up to 144 fibres
  • Compact 250um loose tube
  • High crush resistance
  • Figure 8 self-supporting design
  • PE and flame-retardant LSZH sheath options
  • High tensile strength ideal for outdoor aerial applications

Ordering Information

Part Number Selection

Generated Product Code:

F8...

Example: F812CSM1PE – Figure 8 Cable 12 cores SM1 PE
