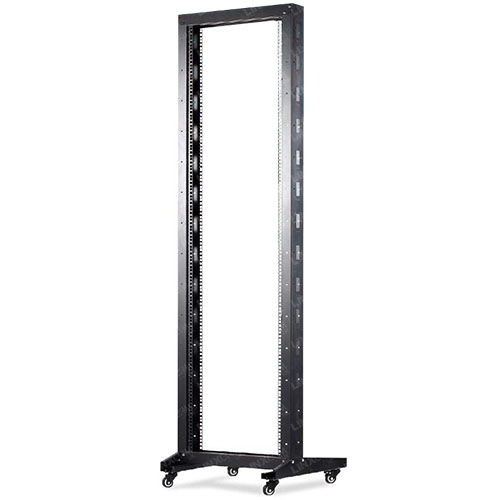

Open Frame – Model KA – 2 Post

Model KA – is a simple modular design which provides easy mounting accessibility.


Datasheet

Categories: ,

Description

Linxcom Open Frame Model KA – 2 Post is a simple modular design which provides easy mounting accessibility and assemble/disassembling process for delivery and relocation. KA frame provide strength and stability of a cabinet in an open architecture and allow multiple unit to be bolt together side by side to create extra room for high density cabling and equipment need.

Open Frame Model KA is 600mm wide, 600mm deep and available up to 47U capacity. Complete with castors this rack can hold up to 300kgs.

This rack can be flat-packed or ready-built and in any RAL colour on customer’s specification. Black colour as standard.


Features & Benefits

  • Max Loading Capacity : 300Kgs
  • SPCC Cold Rolled Steel 1.5mm
  • Complies with ANSI/EIA RS-310-D, IEC60297-2, DIN41494;Part 1, Din41494;Part 7

Ordering Information

Part Number Selection

Generated Product Code:

LXM..

Example: LXMBLKKA6632 – Linxcom Open Frame – 2 Post (Model KA) Black – 32U – 600*600mm (WxD).
