Wall Mounted Cabinet Model E

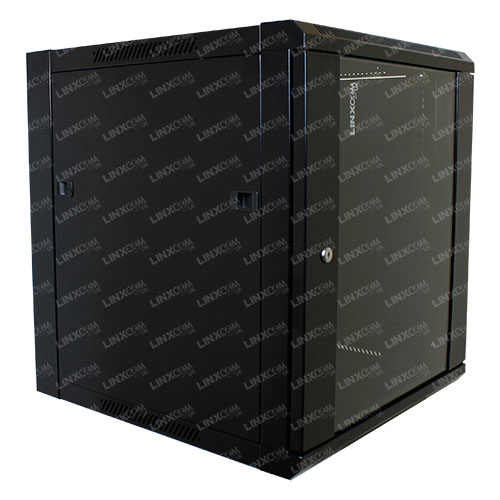

Single section wall cabinet E with glass front door.


Datasheet

Categories: ,

Description

Linxcom 19” wall mounted cabinet model E is a cost-effective solution that is both aesthetically pleasing and durable. Designed to be installed in data centres, equipment rooms and office environments to mount telecommunication, data communication, security, broadcasting and other electronic equipment.

Wall mounted cabinet model E is 570mm wide, up to 600mm deep and up to 27U capacity. This cabinet can hold up to 60kgs UDL.

This cabinet is black colour as standard.


Features & Benefits

  • Available in a variety of heights and depths
  • Tempered glass 180° swing front door with lock
  • Door can be opened from left or right as preferred.
  • Adjustable front and rear mounting rails
  • 570mm wide body with 4U option as 600mm
  • Quick release side doors, optional key locks if required
  • Tool-free changing of door orientation
  • Vented top panels enabling ventilation and reliable operation
  • Compatible with various 19” accessories
  • Maximum 60kgs UDL loading capacity

Applications

  • Data centres
  • Equipment rooms and office environments
  • Telecommunications
  • Data communications
  • Secruity and broadcasting
  • Active equipment

Accessories for cabinets are available on the following page


Ordering Information

Part Number Selection

Generated Product Code:

LXMEBLK.

Example: LXMEBLK5612-F – Linxcom Model E Wall Cabinet – 12U – 570*600mm (WxD).
