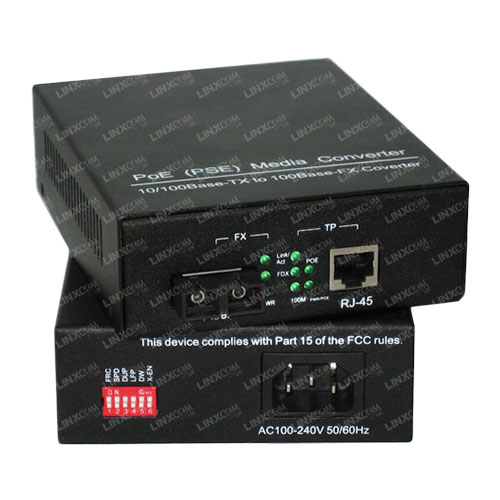

Power Over Ethernet (POE) Media Converter

POE media converters allow power to be transferred a link to a powered ethernet device.


Datasheet

Categories: ,

Description

Power Over Ethernet (POE) Media Converter allows power as well as data to be transferred over a fibre optic link to a powered ethernet device.

We offer Power Over Ethernet (POE) Media Converter in dual fibre to RJ45.

Media converters are a cost-effective solution for transmission distances up to 120km.


Features

  • Built-in 2 port switch which supports flow and bandwidth control
  • Supports single and dual fibre types
  • Full duplex utilises two fibre channels, one for transmitting and one for receiving
  • Half duplex bi-directional fibre utilises WDM to transmit and receive through the same fibre
  • Singlemode or multimode options
  • 10/100M, 10/100/1000M and 1000M available
  • Transmission distances from 550m to 120km
  • SC, ST and FC connector types
  • 1x RJ45
  • Built-in RAM for data buffer
  • Compliant to IEEE 802.3*, FCC and CE standards
  • Internal or external power supply available with fibre type; sfp type only available with external power supply
  • Up to 1.4Gbps data rate
  • Card-type and media racks available

Ordering Information

Part Number Selection

Generated Product Code:

.....POE

Example: MCEPSMST1R40POE – Singlemode ST to 1x RJ45 40km POE Media Converter with External Power Supply
