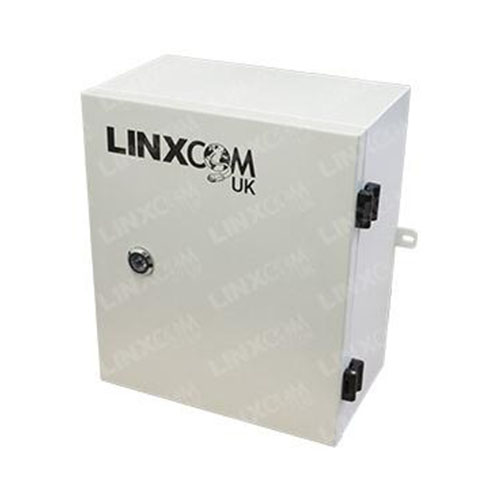

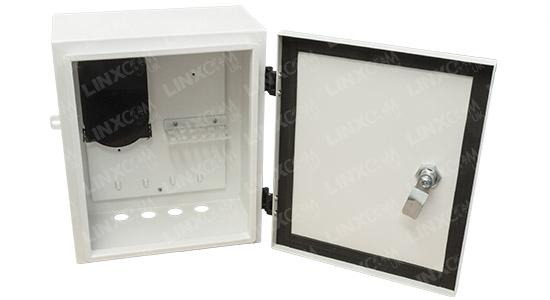

Outdoor Terminal Box – Model 2

Outdoor fibre optic terminal box for medium capacity applications up 24 fibres.


Categories: , Tag:


Linxcom Fibre Optic Terminal Boxes are light and compact whilst maintaining adequate fibre storage needs and minimum bend radii.

Terminal Boxes can be wall, pole or rack-mounted and have a variety of core capacities and adapter types available.

IP65 Rated, to withstand harsh conditions, UV and rainfall resistant.

Features & Benefits

  • 12x SC simplex (LC duplex) ports
  • Up to 24 fibres
  • Cold-rolled steel chassis
  • Rubber sealed door
  • Houses splitters, splices, pigtails and adapters/li>
  • 4 cable entries
  • IP65 rated
  • Complete with splice cassette, splice protection sleeves, cable grips, cables ties, cable glands, cable entry seals and wall fixings
  • Dimensions: 300 * 262 * 150mm


  • Data centres, premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • FTTH

Ordering Information


For more specific part number information – please contact our support team for more information on this product.
