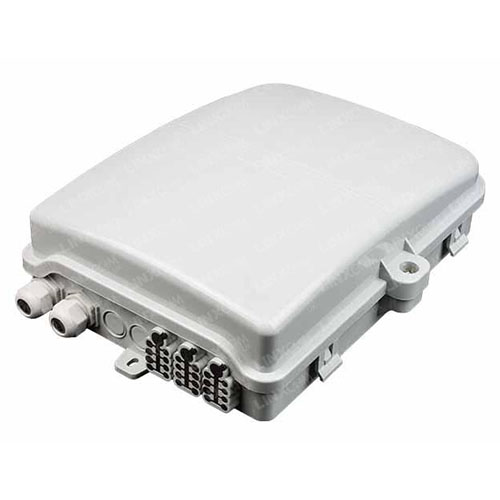

Outdoor Terminal Box – Model 10

Outdoor fibre optic terminal box for high capacity applications up 32 fibres.


Datasheet

Sorry, this product is not available in your country
Categories: ,




Description

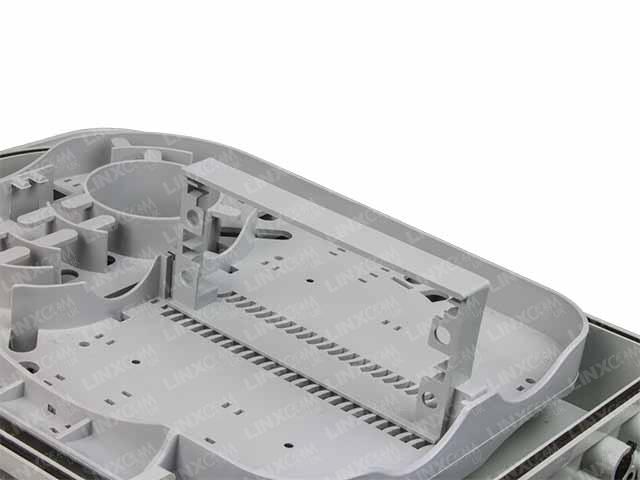

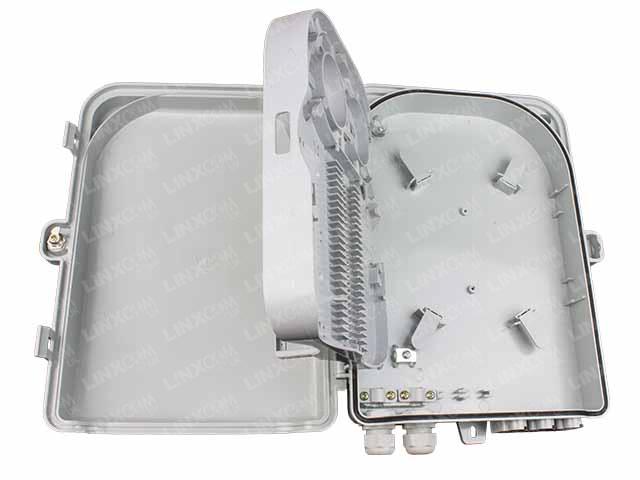

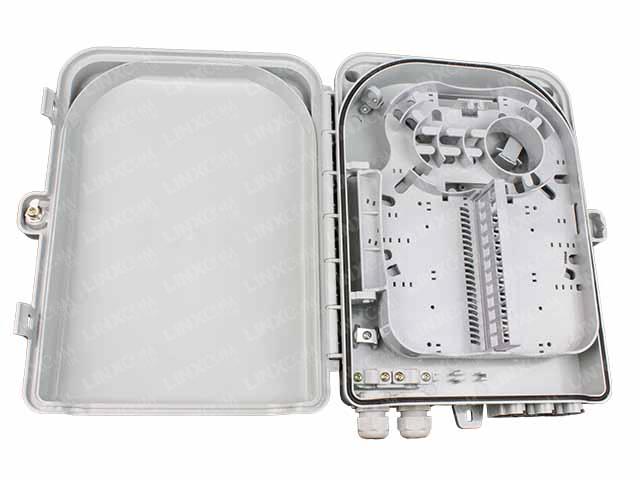

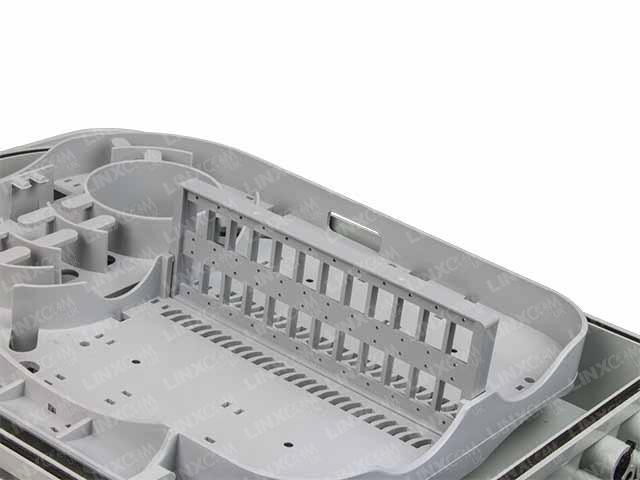

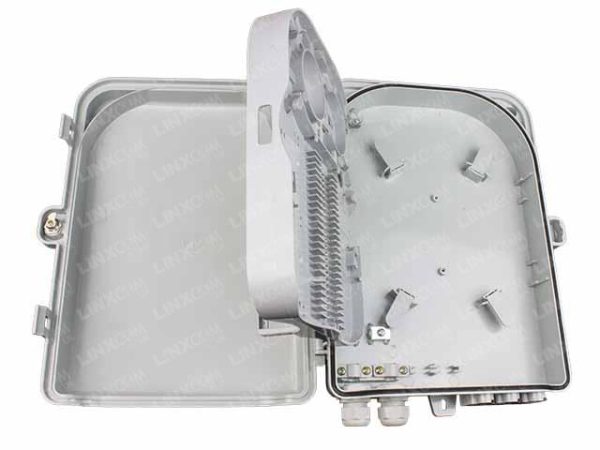

Linxcom Fibre Optic Terminal Boxes are light and compact whilst maintaining adequate fibre storage needs and minimum bend radii.

Terminal Boxes can be wall, pole or rack-mounted and have a variety of core capacities and adapter types available.

IP65 Rated, to withstand harsh conditions, UV and rainfall resistant.


Features & Benefits

  • 24x SC simplex (or 8x SC duplex) ports
  • Up to 24 fibres
  • Cold-rolled steel chassis
  • Rubber sealed door
  • Houses splices, pigtails and adapters; as well as additional products such as active equipment/li>
  • 3 cable entries
  • IP65 rated
  • Complete with splice cassette, splice protection sleeves, cable grips, cables ties, cable glands, cable entry seals and wall fixings
  • Dimensions: 305 * 255 * 80mm

Applications

  • Data centres, premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Indoor applications
  • FTTH

Ordering Information

Part Number Selection

Generated Product Code:

LXMOTB10.SCS24

Example: LXMOTB10EMSCS24 – SC Simplex 24 Port Outdoor Terminal Box Model 10 Unloaded
