1U Loaded Sliding Patch Panel – FC/ST

Loaded patch panel holds up to 12/24 fibres as FC or ST connections.


Datasheet

Categories: , Tags: ,




Description

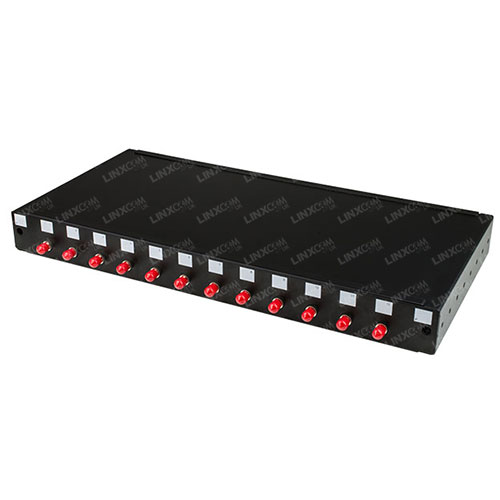

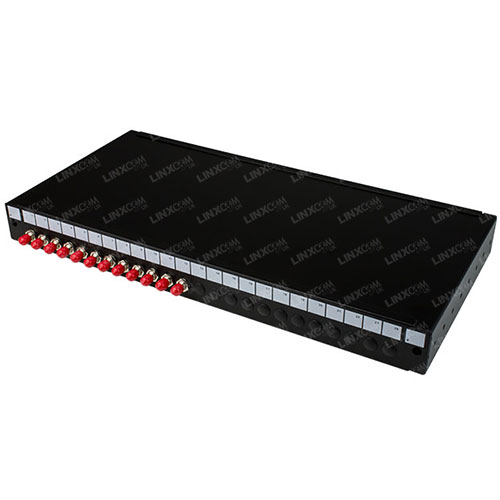

This 1U Loaded Sliding Patch Panel presents up to 12/24 fibres as FC or ST connections.

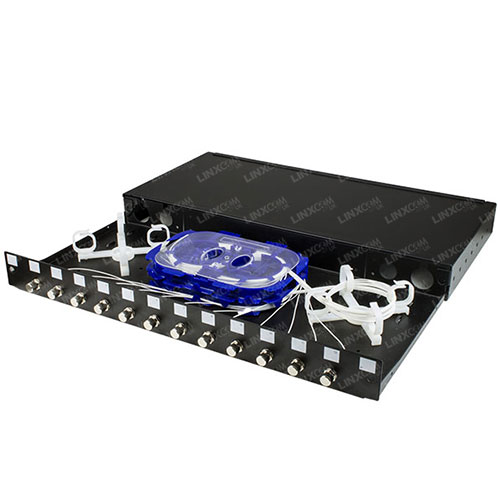

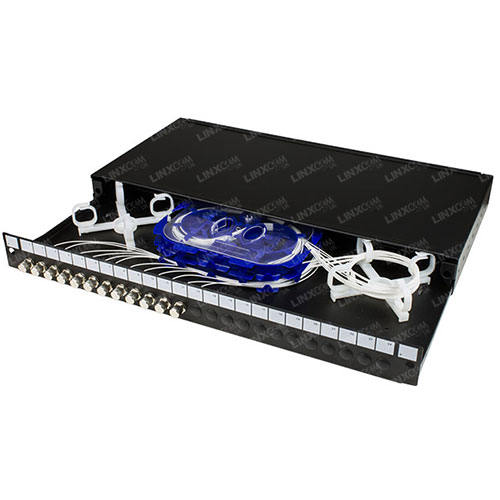

The front of the panel has exchangeable front frames for use with any fibre optic connector type. The tray slides out to allow easy access while preserving the bend radius of connecting patch cables. When fully extended the panel pivots down 45 degrees at a convenient working angle.

Allows direct connection of pre-terminated cables or 12/24 individual bare fibre splices. With adequate fibre storage for 0.9mm pigtails.

Available empty or loaded in any configuration and with any approved fibre type


Features & Benefits

  • Holds up to 12/24 fibres
  • Precise dimensions and craftsmanship
  • Easy to use opening/closing fasteners
  • Removable and exchangeable front frame
  • Adjustable brackets for a fully recessed panel
  • 180° or 45° open working angle for easy access
  • Individually labelled ports
  • 4 cables entries and knock-out plate
  • Built-in strength member tie positions
  • Multi adapter options available within 24 ports
  • Available loaded with adapters, pigtails and more

Additional Datasheets


Ordering Information

Part Number Selection

Generated Product Code:

1USPP.SX..

Example: 1USPPFCSXSM12 – Singlemode loaded 1U FC Simplex 12 Port Sliding Patch Panel
