Inline Enclosure PP15

Fibre optic inline enclosure. IP68 rated with 6 cable entries and up to 192 fibres.
Model B supports up to 288 fibres.


Datasheet

Categories: , Tag:

Description

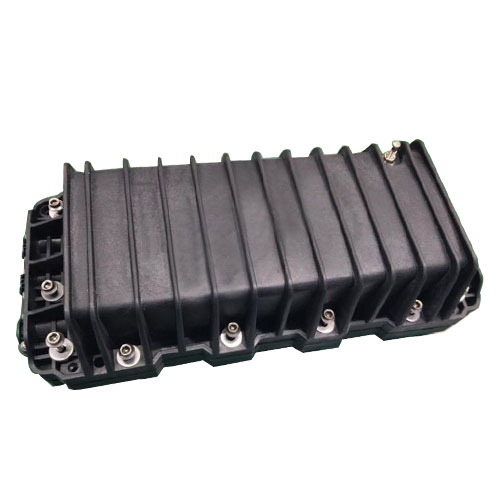

Linxcom Inline Enclosure PP15 provides protection over direct, branch and continual connection for cables.

Inline Enclosure PP15 is easy and reliable to install, delivering high mechanical strength against every environmental condition. Widely used in many applications.


Features & Benefits

  • Up to 192 fibres – Model B supports up to 288 fibres
  • 6 cable entries
  • HQ Polypropylene
  • Protects fibre splices in the field
  • Can be aerial, wall and duct-mounted
  • Suitable for direct burial
  • IP 68 rated

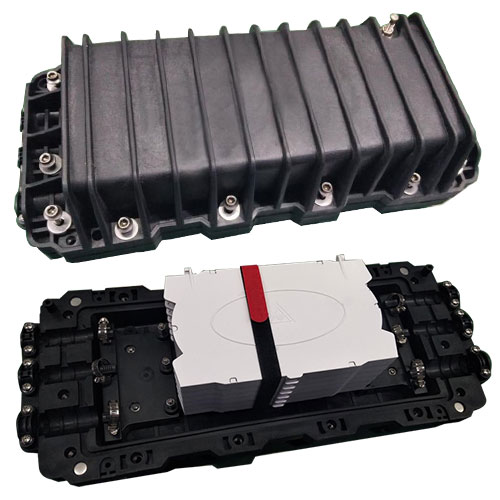

  • Adjustable Cassettes
  • No special tools required
  • Mechanical sealing
  • Dimensions: 537 x 215 x 120mm/ Model B 537 x 215 x 151

Applications

  • Premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • Duct mountable and direct burial
  • FTTH

Ordering Information

Part Number Selection

Generated Product Code:

LXMPP15INLXXM

Replace the XX in the product code with the fibre capacity required.

For Model B just add the B after 15.
