Outdoor Terminal Box – Model 8

Outdoor fibre optic terminal box that takes up to 24 fibres.


Datasheet

Categories: , Tag:




Description

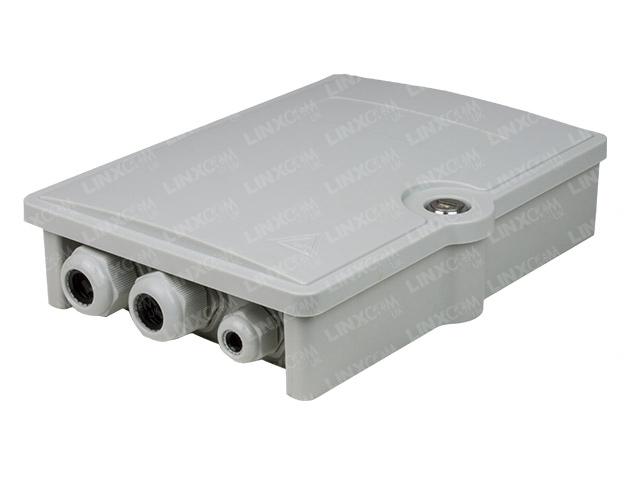

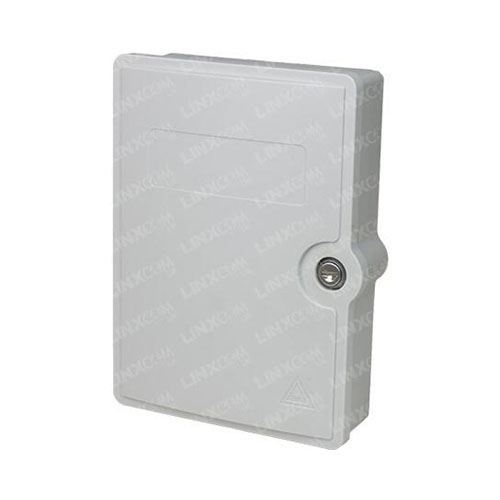

Linxcom Fibre Optic Terminal Boxes are light and compact whilst maintaining adequate fibre storage needs and minimum bend radii.

Terminal Boxes can be wall, pole or rack-mounted and have a variety of core capacities and adapter types available.

IP65 Rated, to withstand harsh conditions, UV and rainfall resistant.


Features & Benefits

  • 6x SC duplex (or 6x LC Quad) ports
  • Up to 24 fibres
  • Cold-rolled steel chassis
  • Rubber sealed door

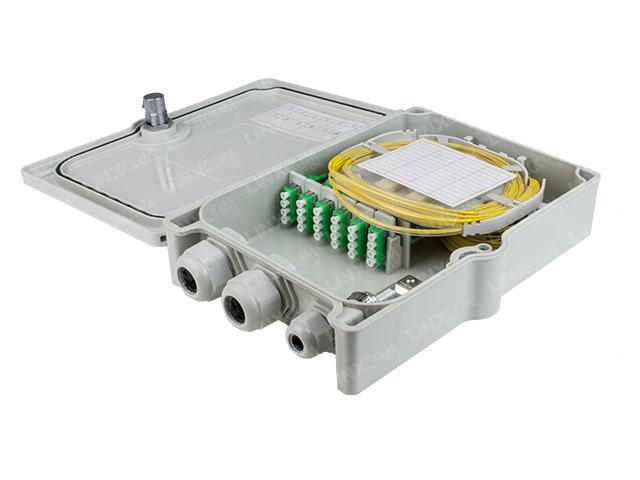

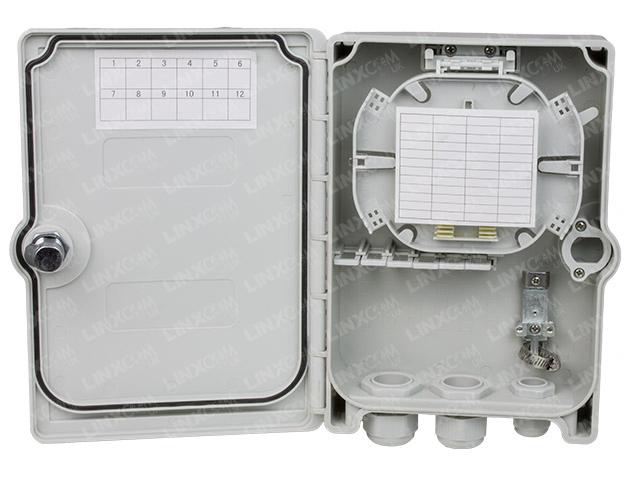

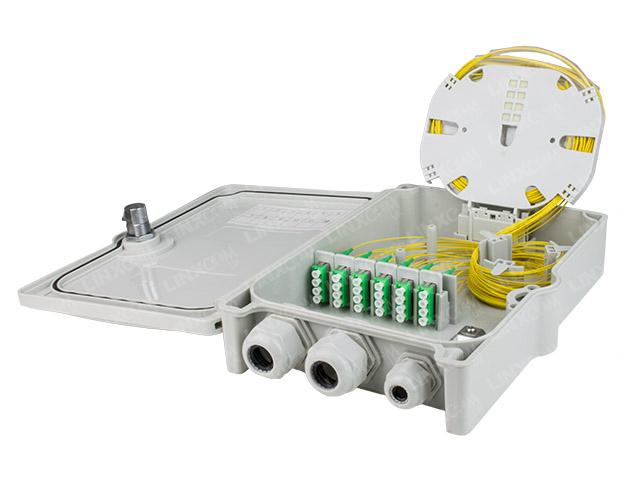

  • Houses splices, pigtails and adapters; as well as additional products such as active equipment/li>
  • 3 cable entries
  • IP65 rated
  • Complete with splice cassette, splice protection sleeves, cable grips, cables ties, cable glands, cable entry seals and wall fixings
  • Dimensions: 208 * 153 * 52mm

Applications

  • Data centres, premise installations and telecommunication networks
  • Ethernet, fibre channel, ATM, LAN, MAN and WAN
  • Data communication
  • Outdoor applications
  • FTTH

Ordering Information

Outdoor-Terminal-Box-Model-8

For more specific part number information – please contact our support team for more information on this product.
