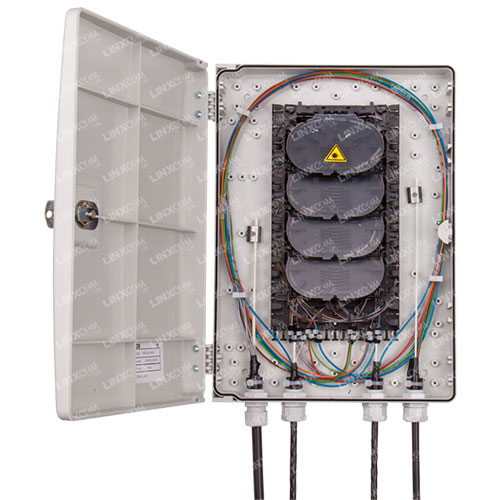

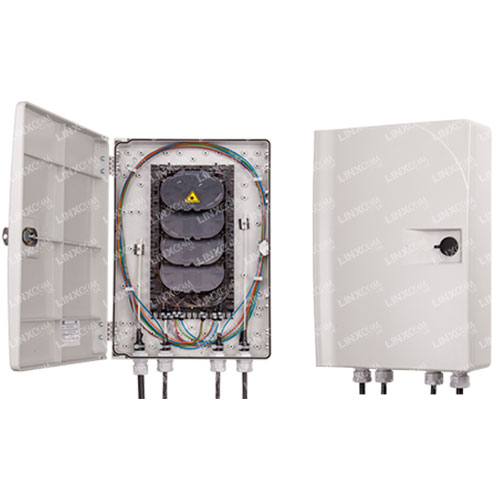

Outdoor Fibre Distribution Box 5

FTTX Distribution Box, post-mounted up to 144 optical splices.


Contact

Categories: ,




Description

Outdoor Fibre Distribution Box 5 is designed for the placement of 48 / 96 / 144 optical splices outdoor. The distribution box comes with a bracket, which enables it to be post-mounted.


Features & Benefits

  • Up to 144 splices
  • IP Rating: IP54 to EN 60529 / IK to EN 50102
  • Possibility of PLC splitter placement
  • Fixation of input/output cables
  • 4× PG bushing for input/output cables
  • Lockable door
  • Material: PVC, ABS
  • Dimensions: 250 × 373 × 69mm – 48 Splices
  • Dimensions: 250 × 373 × 91mm – 96 / 144 Splices

Ordering Information

Part Number Selection

Generated Product Code:

LXMPMD05..

Example: LXMPMD05EM144S – Linxcom Unloaded Post-Mounted Outdoor Fibre Distribution Box 5 – 144 Splices
