Outdoor Fibre Distribution Box 3

FTTX Distribution Box, post-mounted up to 48 fibres.


Categories: ,

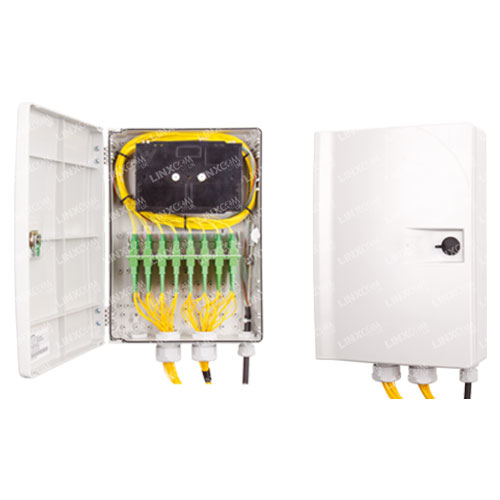

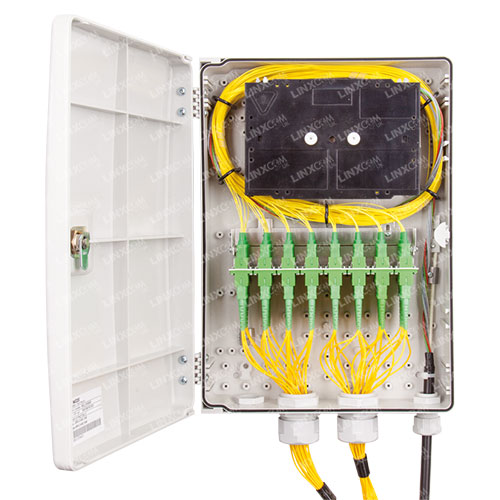

Outdoor Fibre Distribution Box 3 is designed for the placement of 48 optical connectors outdoor. The distribution box comes with a bracket, which enables it to be post-mounted.

Features & Benefits

  • Up to 48 fibres
  • IP Rating: IP54 to EN 60529 / IK to EN 50102
  • Integrated fibre management + 2× EC 2 splice tray for the placement of optical splices
  • Possibility of PLC splitter placement
  • 2× PG bushing for input cable
  • 2× PG bushing with rubber insert for output patchcords
  • Hinged adapter holder for easier manipulation with adapters
  • Lockable door
  • Material: PC/ABS
  • Dimensions: 250 x 380 x 90mm

Ordering Information

Part Number Selection

Generated Product Code:


Example: LXMPMD03EMSCS48 – Linxcom Unloaded SC Simplex Post-Mounted Outdoor Fibre Distribution Box 3
