6U 19″ 540x450mm Wall Mounted Cabinet Model Q – Black (Assembled)

Sorry, this product is not available in your country
SKU: LXMQBLK5406/SL Categories: , Tag:




Description

Linxcom 6U 19″ 540x450mm Wall Mounted Cabinet is a cost-effective solution that is both aesthetically pleasing and durable.

Designed to be installed in data centres, equipment rooms and office environments to mount telecommunication, data communication, security, broadcasting and other electronic equipment.

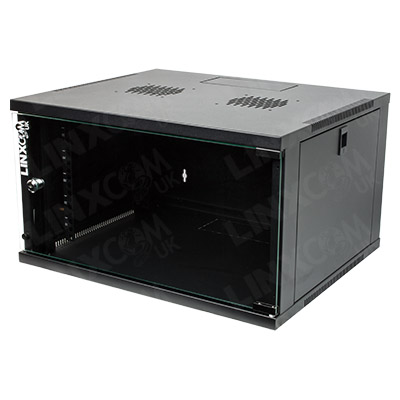

The 6U 19″ 540x450mm Wall Mounted Cabinet model Q is single section welded design with lockable single front glass door and solid back panel with mounting bracket.

Model Q is 540mm wide, 600mm deep and up to 15U capacity. This cabinet can hold up to 50kgs UDL.

This cabinet is ready-built and in any RAL colour on customer’s specification. Black colour as standard.

Features

  • Toughened 5mm glass front door
  • Lockable front door
  • Black powder-coated finish
  • Ready-built, no assembly required
  • Tool-free changing of front door orientation
  • Vented top and bottom panels and door for improved airflow
  • Max 50kgs UDL loading capacity
  • 1.2mm cold-rolled steel body
  • Mounts standard 19″ equipment
  • Front and rear mounting profiles
  • 2x 120mm fan cut-outs
  • Grounding Screw
  • Cable Entries: 2 – 1x Top, 1x Bottom, Knock-out Plates
  • Mounting Profiles: Front and Rear
  • Lockable Doors: Front Only
  • Compatible with Castors: No
  • Additional Cage Nuts: 20 Sets

Accessories for cabinets are available on the following page
