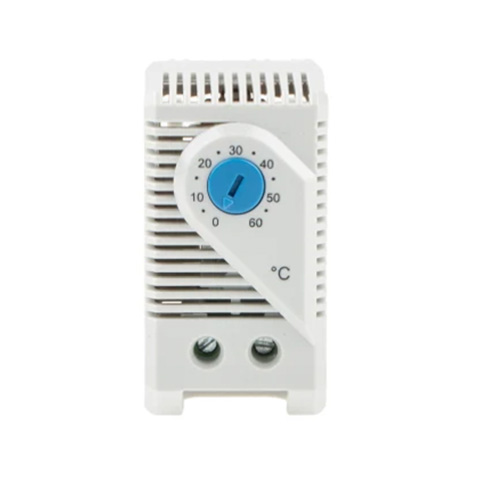

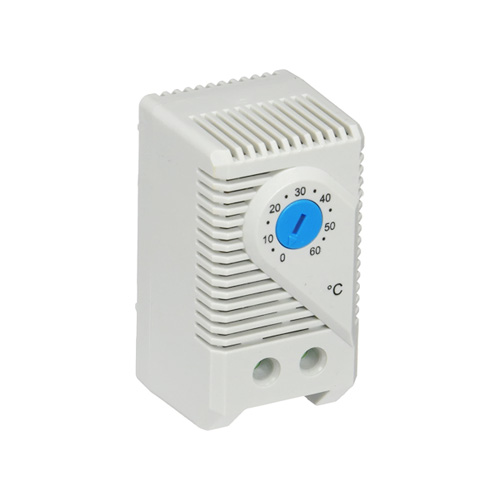

KTS-011 Enclosure Thermostat, 0+60°C


Datasheet

SKU: LXMA-28 Categories: , Tag:



Description

Our Small Compact Thermostat KTS-011 for use on DIN RAIL (normally open); is suitable for regulating filter fans and heat exchangers or for switching signal devices when temperature limit has been exceeded. The contact closes when temperature is rising.

Features & Benefits

  • Thermostatic bimetal sensor element
  • Lightweight at only 40g
  • IP20 Rated

Specifications

Dimensions60x33x43mm
Casing MaterialPlastic UL94 V-0 Light Grey
Contact Resistance<10mΩ
Service Life>100,000 cycles
StandardsEN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection2-pole terminal for 2.5mm2
MountingClip for 35mm DIN rail
Operating/Storage Temperature-45 to +80 °C
