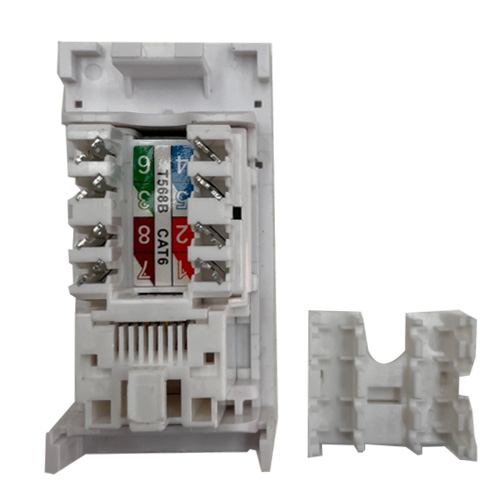

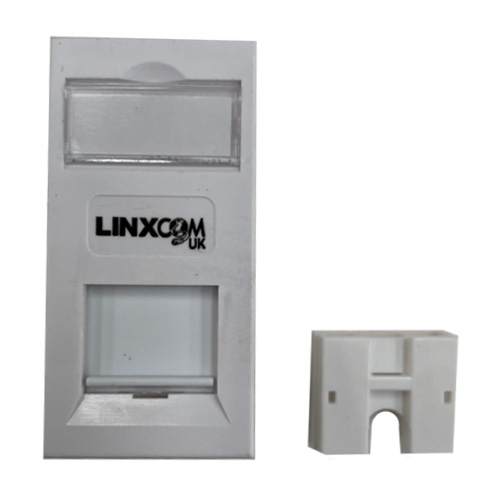

Cat 6 UTP UK Face Module- Pack of 10

SKU: UTP6UKFM180J/M3x10 Categories: , Tag:



Description

Linxcom Category 6 jacks surpass TSB 40A, EIA 568A, and DIS11801 category 6 standards.

Features & Benefits

  • Complete Outlet if combined with Faceplate and Back Box
  • Designed for use with 110 punch-down tools
  • Meets the requirement proposed by TIA /EIA 568 B .2
  • Bundle back of 10units

Applications

  • POTS, T1&Tq fractional
  • 52/155 Mbps ATM (ATM Forum)
  • ASDN basic & primary rate
  • 100 BASE-T4 (Fast Ethernet)
  • 4/16 Mbps Token Ring (IEEE802.5)
  •  100 VG-Any LAN (IEEE802.12)
  • 10 BASE-T (IEEE802.3)
  • 100 BASE-T (Fast Ethernet)
  • 100 Mbps TP-PMD
  • 1 Gbps Ethernet

Performance

Insertion Life750 cycles minimum
IDC Life200 times (22-26 AWG solid wire) minimum
Contact MaterialPhosphor Bronze, Gold Plating (0.5mm)
IDC MaterialPhosphor Bronze stamp pin (0.35mm)
ContactorSn6.5-0.1 (Y)
Gold Coating15u”, 30u”, 50u”
Silver Coating0.5um
Copper Conductor0.4~0.64mm
Housing MaterialPC UL94V-0
ConformanceEIA/TIA 568A/B wiring standards, ISO/IEC 11801:2002, EIA/TIA 568B.2.1:2002, RoHS

*colours may be different due to lighting
