Open Frame Model KC – 2 Post

Model KC – 2 Post is ideal for space constrained 19-inch rack mount application.


Datasheet

Categories: ,




Description

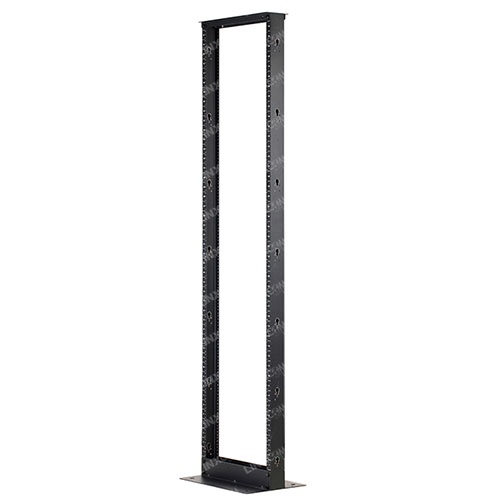

Linxcom Open Frame Model KC – 2 Post is ideal for space constrained 19-inch rack mount application.

Model KC is designed with adjustable depth to support larger equipment installation and allow higher cabling capacity.
The frame provide strength and stability of a cabinet in an open architecture and offer higher accessibility level to equipment and cabling as well as unrestricted ventilation and air flow.

Open Frame Model KC is 515mm wide, 344mm deep and available up to 45U capacity. Complete with castors this rack can hold up to 300kgs.

This rack can be flat-packed or ready-built and in any RAL colour on customer’s specification. Black colour as standard.


Features & Benefits

  • Max Loading Capacity : 300Kgs
  • SPCC Cold Rolled Steel 1.5mm
  • Complies with ANSI/EIA RS-310-D, IEC60297-2, DIN41494;Part 1, Din41494;Part 7

Ordering Information

Part Number Selection

Generated Product Code:

LXM..

Example: LXMBLKKC5345 – Linxcom Open Frame – 2 Post – Model KC – Black – 45U – 515*344mm (WxD).
